A CMOS sensor captures images by converting light into electronic signals. Each pixel in the sensor detects photons and generates a corresponding electrical charge.
Digital cameras and smartphones often use CMOS (Complementary Metal-Oxide-Semiconductor) sensors for image capturing. These sensors consist of an array of photodiodes, each responsible for translating received light into an electrical signal that encodes the image. The CMOS sensor operates with high efficiency, allowing for lower power consumption compared to alternative technologies such as CCD (Charge-Coupled Device) sensors.
How Does A CMOS Sensor Work? They enable fast processing speeds, making them ideal for capturing multiple frames per second. Thanks to their integrated circuitry, CMOS sensors support on-chip functions like noise reduction and pixel binning, enhancing image quality. As technology advances, CMOS sensors continue to shrink in size while increasing in resolution, providing sharper and more detailed photos in a wide array of lighting conditions.
The Heart Of Digital Imagery
The heart of digital imagery beats within a small but mighty component known as the CMOS sensor. This remarkable piece of technology transforms light into the stunning images we see on our screens today.
Cmos Sensor Fundamentals
A CMOS (Complementary Metal-Oxide-Semiconductor) sensor functions as the pivotal element in a digital camera. It captures light and converts it into electronic signals. These signals then become the digital images we view and share. The CMOS sensor includes numerous pixels, tiny areas that sense light. Collectively, these pixels record the details and colors of the scene before the lens.
- Light sensitivity: CMOS sensors vary in response to light, influencing the image quality.
- Resolution: Defined by the number of pixels, higher resolution provides finer image detail.
- Pixel size: Larger pixels collect more light, improving image quality in low-light conditions.
Roles In Image Capture
CMOS sensors play crucial roles in capturing images. They determine the color accuracy, brightness levels, and overall sharpness of the final image.
| Function | Description |
|---|---|
| Photon Detection | Pixels on the sensor detect photons, initiating image formation. |
| Signal Conversion | Detected light is converted to an electronic signal by each pixel. |
| Image Processing | Electronic signals are processed to create a digital image. |
Sensors must also manage noise reduction and dynamic range. They ensure the darkest and lightest parts of an image are clear. Advanced CMOS sensors even help with high-speed image capture for videos or continuous photo shooting.
In the world of photography and videography, the CMOS sensor is a powerhouse. Understanding its functions helps us appreciate the complex technology that goes into capturing life’s moments.
Credit: www.picturecorrect.com
Peering Through The Lens
Imagine your camera as your eye. When you look at something,
light enters the eye and you see a picture. The camera works like this too. The lens of the camera is like the cornea of our eye. It focuses the light. But inside the camera, there’s a special part called a CMOS sensor. This sensor captures the light and turns it into a photo!
Light Conversion Process
The CMOS sensor takes light and changes it into electronic data. Let’s see how this magic happens:
- Light hits the sensor through the camera’s lens.
- Each point of light reaches a tiny part called a photosite.
- The photosite collects photons—little light particles.
- These photons are turned into electrons.
The more light, the more electrons. These electrons are what create the image.
Pixel Magic
Now, each photosite on the sensor corresponds to a pixel in the picture. Here’s what happens:
- Each photosite gathers light for its pixel.
- Colored filters let only certain colors in.
- This creates red, green, and blue pixels.
- Electronics in the camera combine these colors.
Together, they create the full-color image you see on your screen or photo!
From Photons To Photos
From Photons to Photos captures the fascinating journey that light undertakes to become the snapshots we love. A CMOS sensor plays a crucial role in this transformation. It’s the eyes of a camera, turning light into the digital memories we keep forever.
Electronic Charge Collection
The first step is electronic charge collection. Here’s how it happens:
- Light enters the camera lens.
- It hits the sensor packed with millions of photodiodes.
- Photodiodes convert photons into electrons.
- Each photodiode accumulates charge proportional to the light’s intensity.
This process creates an electronic image, with each pixel on the sensor contributing to the final photo. The greater the light, the more charge it accumulates. The journey from light to charge is the magic of modern photography.
Analog To Digital Conversion
But, an electronic image isn’t enough. We need it in a form that computers can understand. This calls for analog to digital conversion.
- The sensor readout turns analog charges into voltage.
- An Analog-to-Digital Converter (ADC) translates voltage into binary data.
Each binary bit represents digital pixels, forming the photos we see on screens and print on paper. It’s the language of digital devices, ensuring that the captured light transforms into shareable, storable images.
Credit: www.globalspec.com
Advancements In Cmos Technology
The Complementary Metal-Oxide-Semiconductor, or CMOS sensor, has seen remarkable advancements over the years. Once behind its counterpart, the Charge-Coupled Device (CCD), CMOS technology now leads in terms of innovation and performance in image sensors.
Cmos Vs. Ccd
Comparing CMOS and CCD sensors uncovers differences worth noting. Here are key distinctions:
- Power Consumption: CMOS sensors generally require less power than CCDs, leading to longer battery life in devices.
- Speed: CMOS are faster in readout compared to CCD sensors.
- Cost: The manufacturing of CMOS sensors often comes with lower costs, making them more affordable to produce.
- Size: With a simpler structure, CMOS can be more compact.
Future Of Image Sensors
Future advancements in CMOS technology continue to shape the imaging industry. Expectations include:
- Smaller pixel sizes for higher resolution.
- Improved low-light performance for better image quality.
- Integration with AI for advanced image processing.
- Greater dynamic range to capture scenes in varied lighting conditions.
Impact Of Cmos Sensors On Different Fields
The world has witnessed a digital revolution, largely because of CMOS sensor technology. They convert light into electrons, producing digital images. This cutting-edge tech has reshaped various sectors. Let’s explore its profound impact in two major fields: photography and the scientific and medical communities.
Photography And Videography
CMOS sensors have transformed cameras. They are everywhere, from phones to high-end DSLRs. They make cameras lighter, consume less power, and offer faster processing. This is a big deal for photographers and videographers alike.
- Sharper images: With their advanced abilities, pictures are now clearer.
- Higher frame rates: Capturing action scenes is easier with no blur.
- Low-light performance: Photos and videos are brighter, even in the dark.
Scientific And Medical Applications
In science and medicine, CMOS sensors are vital. They help in creating detailed imaging for various applications. This benefits not just scientists, but everyone.
| Application | Advantage |
|---|---|
| Microscopy | Makes tiny details visible |
| Astronomy | Helps in capturing clearer space images |
| Medical Imaging | Facilitates accurate diagnosis and treatment |
Doctors use these sensors to create sharp images for diagnostics. This leads to better patient care. Tech like this is essential in precise scientific work too. Researchers capture images that were once impossible.

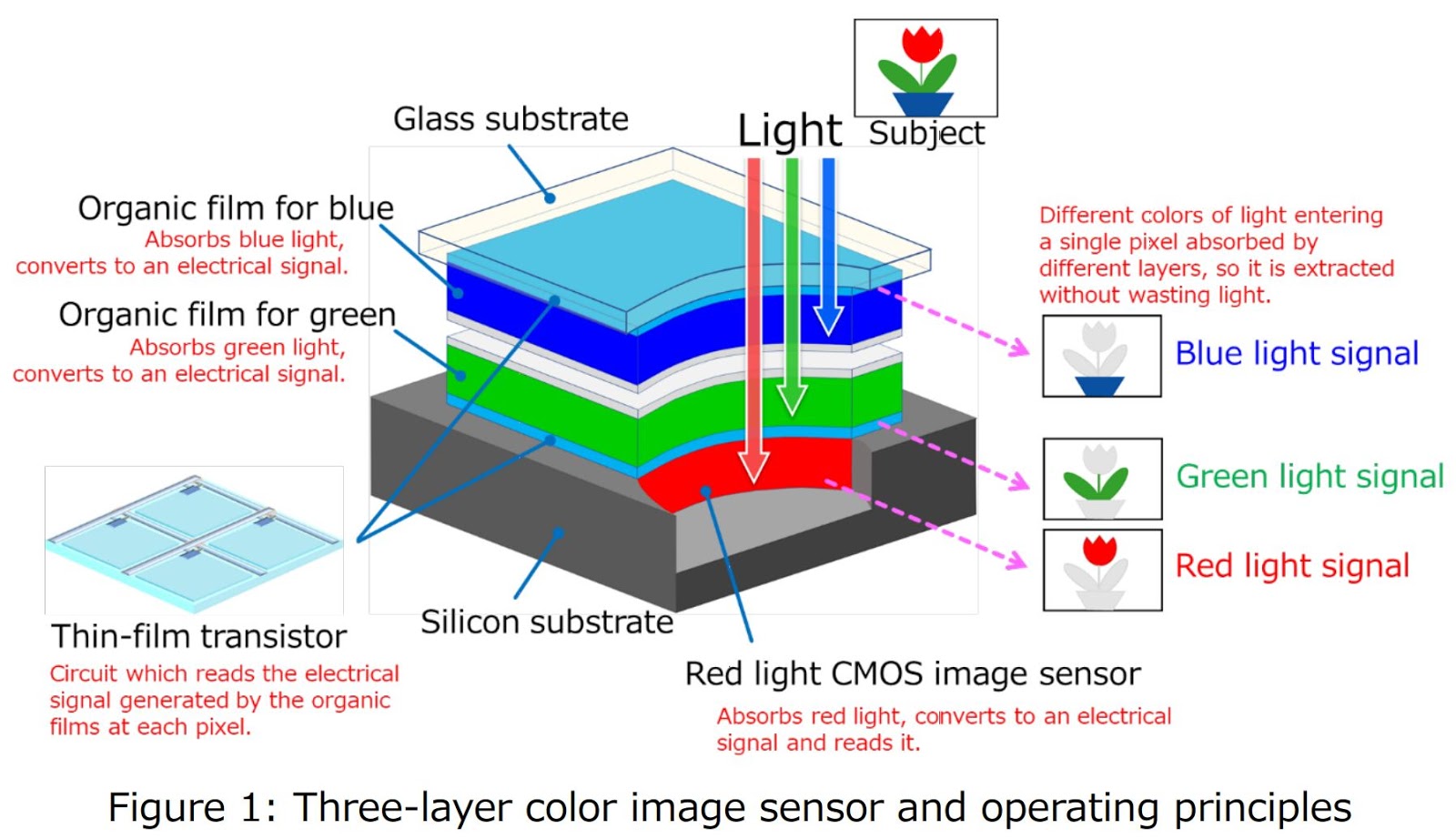

Credit: image-sensors-world.blogspot.com
Frequently Asked Questions Of How Does A Cmos Sensor Work
What Is A Cmos Sensor In Cameras?
A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. In cameras, it’s crucial for capturing images, as it records light intensity and color using millions of pixel sensors to create photographs.
How Does Cmos Technology Improve Image Quality?
CMOS technology enhances image quality by offering faster readout, lower noise, and greater dynamic range. It allows for higher resolution images and better low-light performance, making it ideal for modern digital photography.
What Are The Benefits Of Using Cmos Sensors?
The benefits of using CMOS sensors include lower power consumption, faster processing speeds, and the ability to integrate all camera functions on a single chip. This results in more compact camera designs and longer battery life.
Can Cmos Sensors Capture Video?
Yes, CMOS sensors are well-suited for video capture. They can process images quickly, which allows for smooth video recording at various frame rates, making them popular in both photography and videography.
Conclusion
Understanding CMOS sensors is key to leveraging modern imaging technology. These intricate components power a vast array of devices, capturing images with precision. By grasping their operation, users can make informed choices about their photography and video gear. Dive into the world of CMOS sensors and unlock your device’s full potential.
